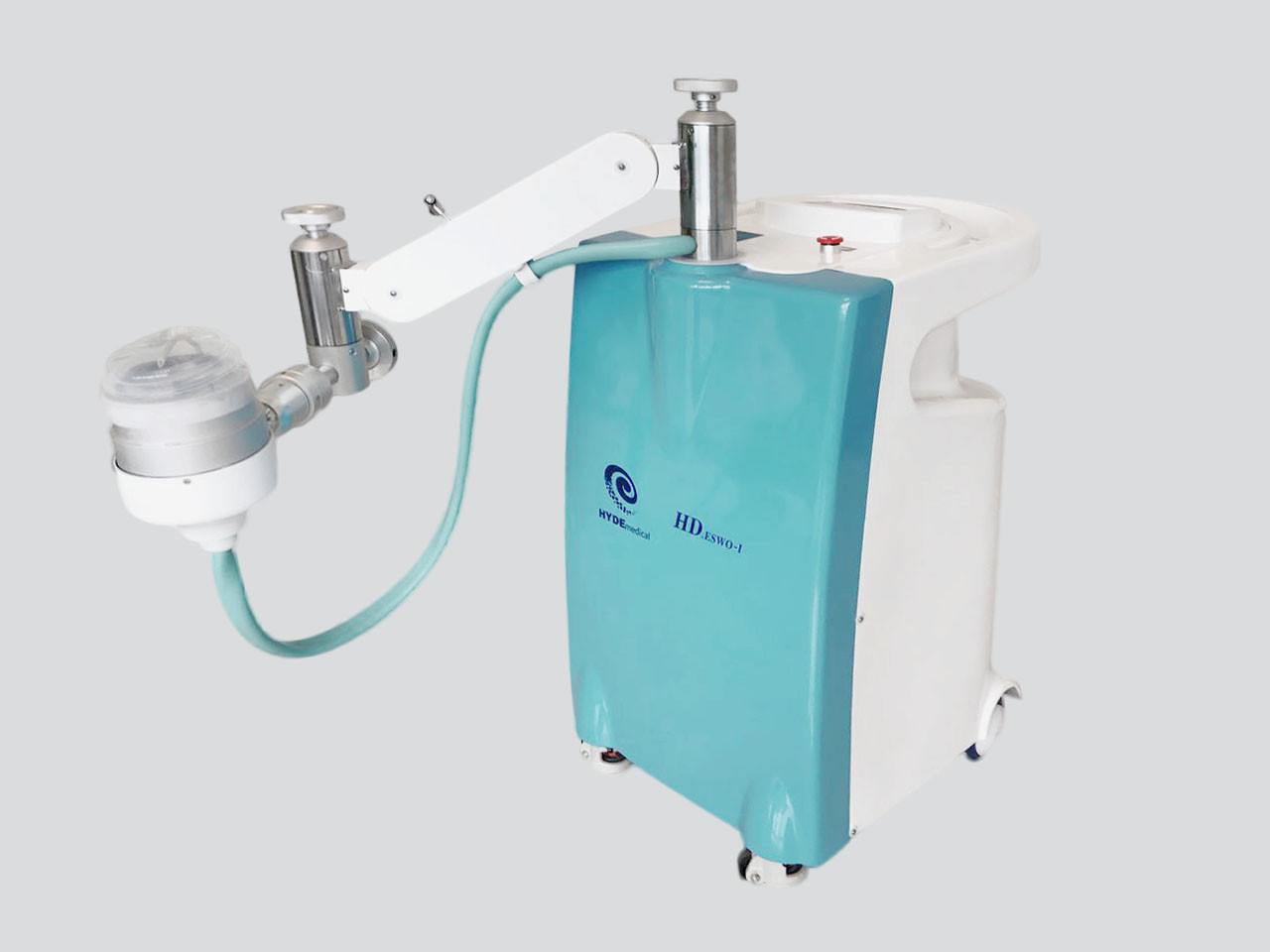

AC 220V Extracorporeal Shock Wave Therapy Machine For Orthopedics Treatment
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | shockwave therapy equipment,shockwave therapy device |
||
|---|---|---|---|
Extracorporeal Shock Wave Orthopedics system
| Model | HD.ESWO-I | Photo | |
| Parameters | Value | ||
| Power supply | Voltage | AC 220V | |
| Frequency | 50/60±1HZ | ||
| Power | ≤2kw | ||
| Shock wave system | Electromagnetic shock wave system | ||
| Penetration depth | 110mm | ||
| Focal Zone | ±7mm*±7mm*±12.5mm | ||
| Shrinking Pressure | 20~50Mpa | ||
| Expanding Pressure | <9MPa | ||
| Pluse Width | ≤1μS | ||
| Pluse Front | ≤0.5μS | ||
| Cup Dimater | φ80 | ||
| EM Disk Life Guaranty | 500,000 shocks | ||
| Voltage Range | 10~18KV | ||
| Energy Level | 7(6~12) | ||
| Energy | 46~104J | ||
| Frequency | 0.3~2 Second/shock | ||
| Console system | Console | Shock wave control system Mechanical movement control system Localization control system |
|
| Handpiece | Shock wave control system Mechanical movement control system |
||
